Side-entry mixers for biogas
The Landia PowerMix side-entry mixers are most often used for mixing liquids that have a high dry matter content or for liquids that have a high temperature. The solid stainless steel propeller with its backward curved blades is designed to shed stringy materials, which makes this mixer ideal for the tough applications within biogas plants.
The benefits of a side-entry mixer for biogas

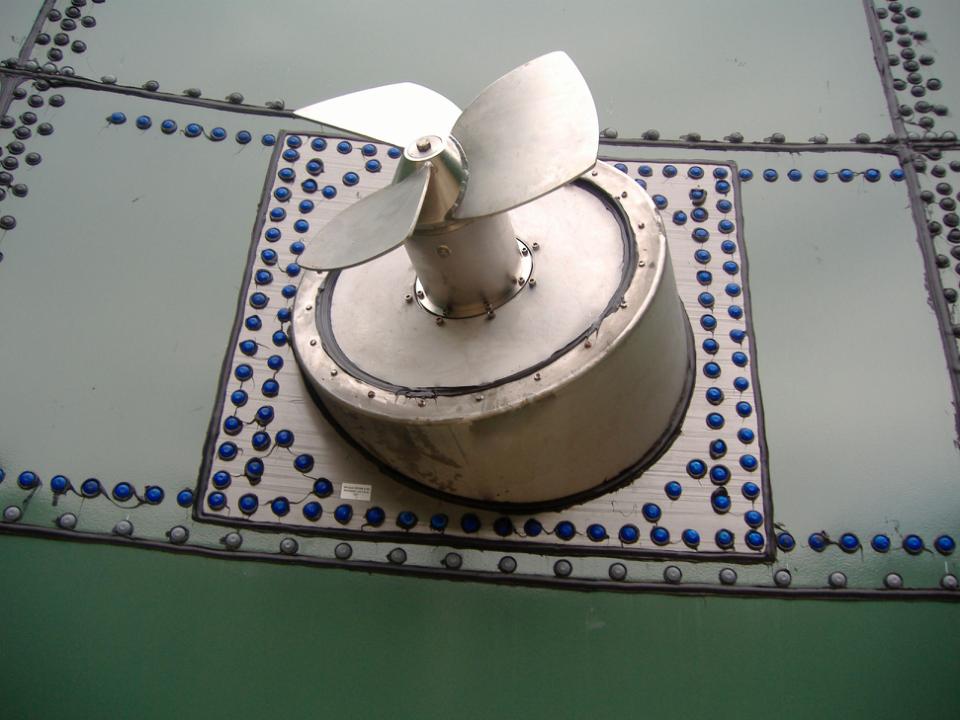

By mounting the mixer through the side of the tank wall, regular lubrication and prescribed oil changes can be done from outside the tank. Thus, allowing the machine to continue its daily operation without needing to empty the tank or lift the mixer out.
The Landia PowerMix side-entry mixer is equipped with a fan-cooled motor that is completely shielded from the liquid. All parts of the mixer that are in contact with the liquid are constructed of solid stainless steel.
The side-entry mixer can be installed on virtually all types of above-ground tanks.

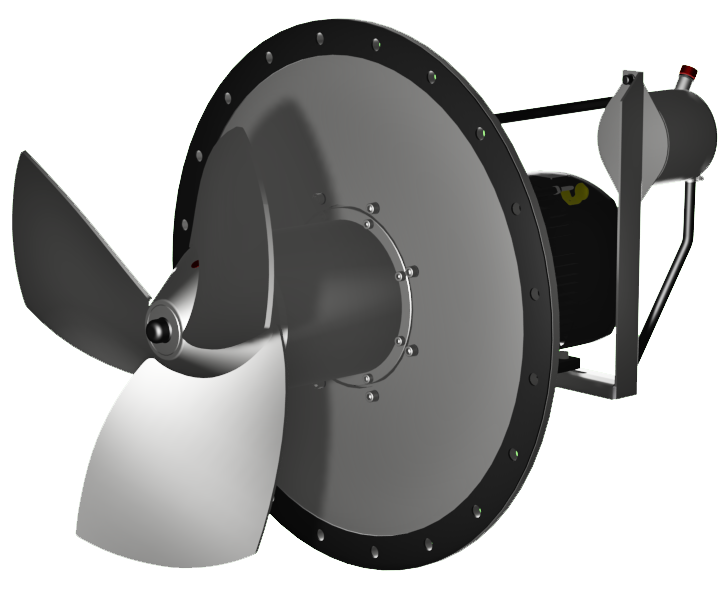

Side-entry mixer POPTR-I
| Motor sizes | from 5.5 - 18.5 kW |
| Propeller diameter | 575 - 770 mm |
| Propeller rpm | 300 rpm |
| Available with | Ex motor / IE3 motor |
Side-entry mixer PODTR-I
| Motor sizes | from 4.0 - 11.0 kW |
| Propeller diameter | 355 - 385 mm |
| Propeller rpm | 750 rpm |
Our solutions within biogas
Mixing in reactor tanks
Landia GasMix is a mixing system where all components are located outside the tank.
Mixing in storage tank
Landia has a solution for your mixing for all types of storage tanks – both with and without covers.
From waste to biogas
Many different types of waste products can be extensively recycled in biogas plants. It requires the right pumps and mixers made form the right materials.
Case studies - biogas
A strong partner with extensive experience in biogas
You will not find anyone who has more experience with pumping and mixing solutions for biogas plants than Landia. We have been involved since the biogas industry’s infancy in Denmark, and today you will find Landia products in biogas plants worldwide.
The biogas industry is growing year by year and we are keeping pace.
When you contact Landia, you will speak with employees who know the industry, including some who have worked in biogas plants themselves.
